GermAwayUV HVAC Coil Scrubber
Convert your AC System into a full-size Air Purifier with our HVAC Coil Scrubber
GermAwayUV have long recognized how important air quality is and have provided a range of superior quality air purification products. Traditional HVAC systems can circulate a mix of pollutants and toxins released by people, pets and products into the air you breathe. UVC light acts as an extra element to purify the air, killing almost all harmful microorganisms such as viruses, colds, flu and pneumonia. The benefits of UVC light in sterilizing the air we breathe has been well documented over the last decade.
UVC light emission destroys 99.9% of bacteria and molds
The coil in your AC system is a breeding ground for fungus, bacteria and molds, by placing the most powerful UVC light bulbs mere inches from the coil, the GermawayUV Coil Scrubber vastly improves the efficiency of a standard HVAC system.
Upon installing this system in your home HVAC system, air quality will be noticeably improved as the UVC light emitted tackles allergy-causing microbes as well as fumes and residues from household cleaners, paints, chemicals, and other VOCs (volatile organic compounds). Everyone benefits from clean, fresh air, but it is essential for people with allergies and respiratory issues.
The system will also prevent your AC coil from getting soiled prematurely and needing costly professional cleaning.
Applications:

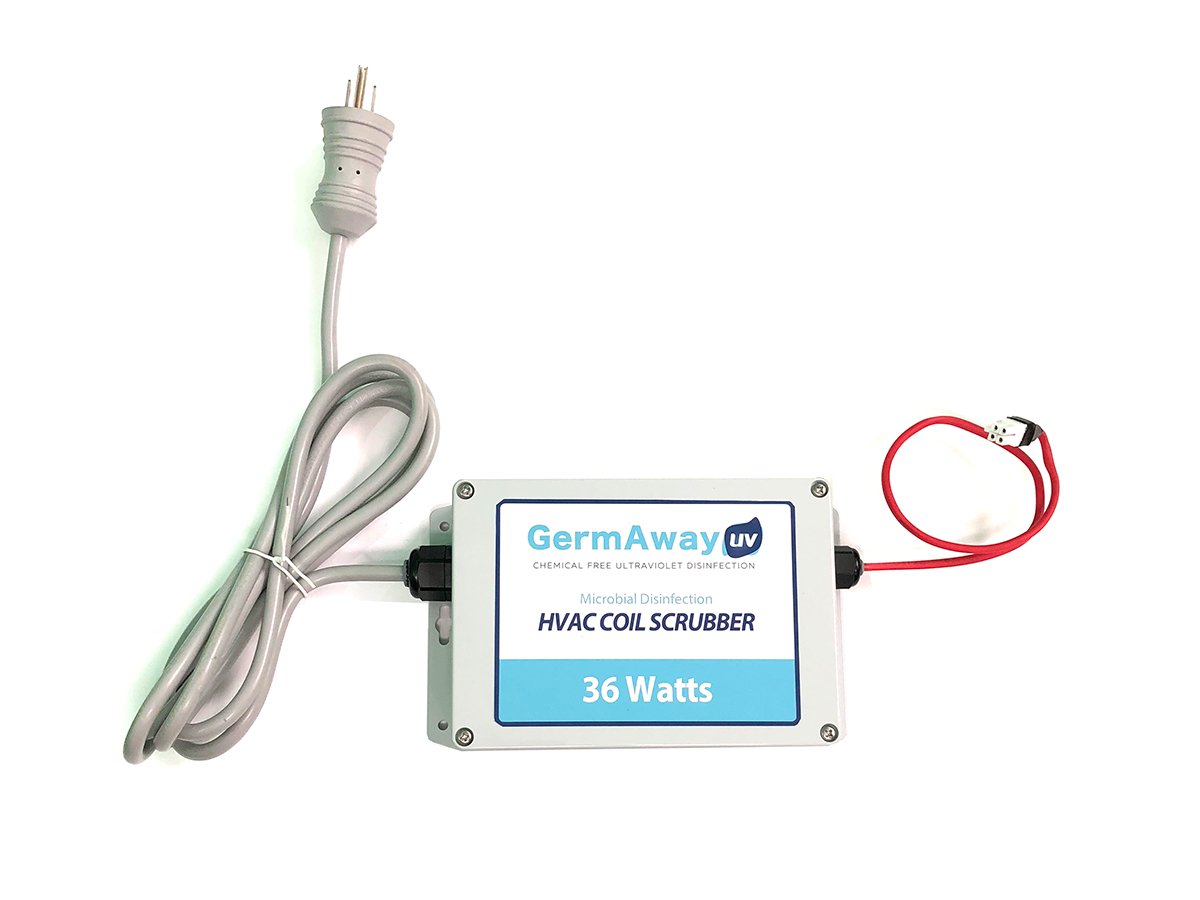

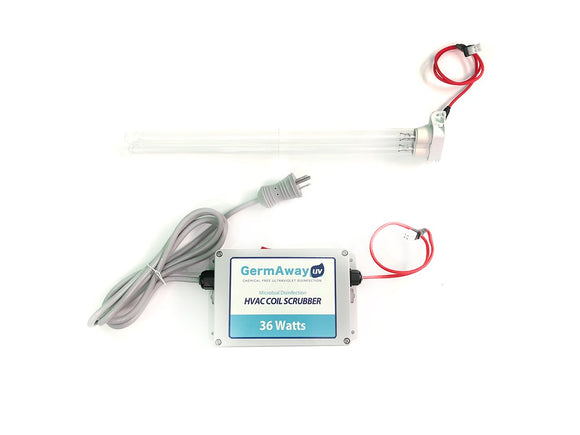

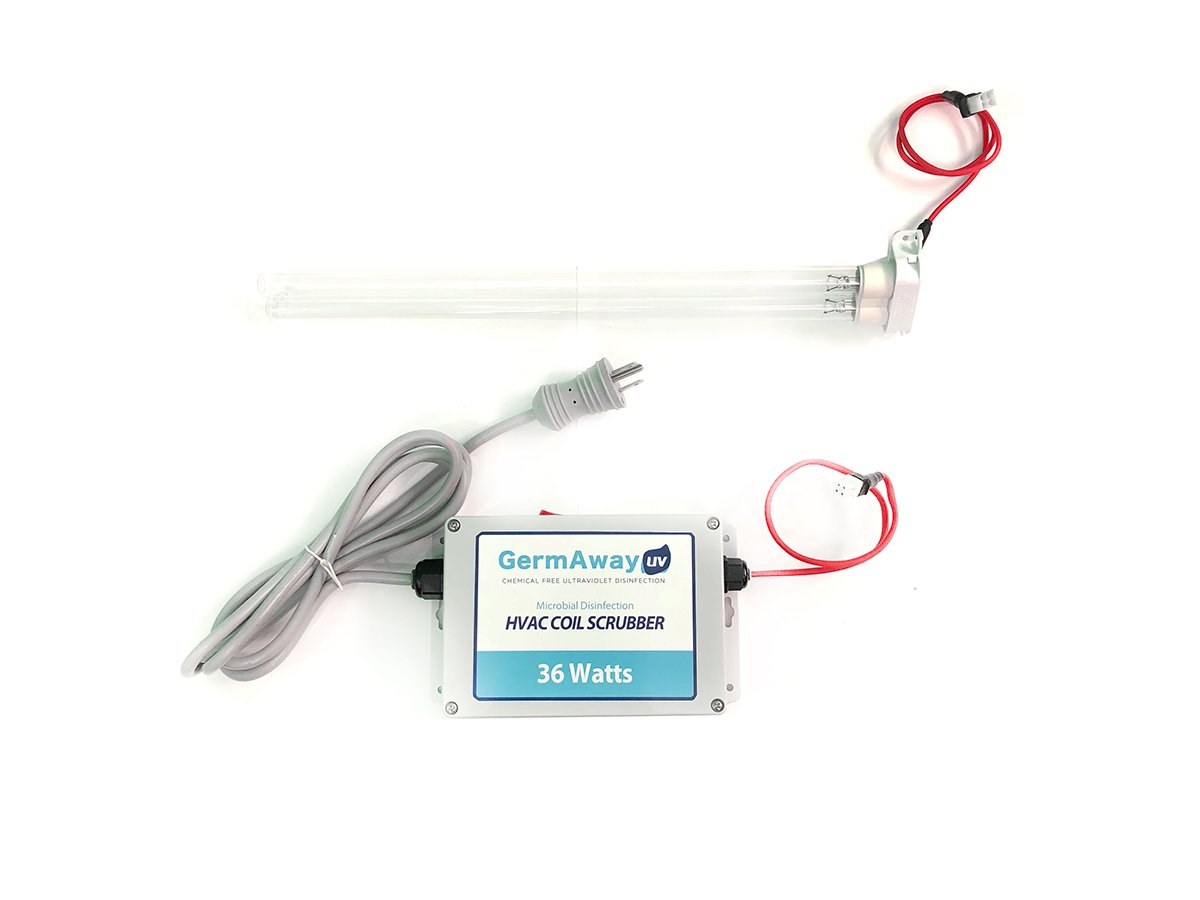

- 36 Watt Scrubber: AC systems for homes under 1,500 square feet.

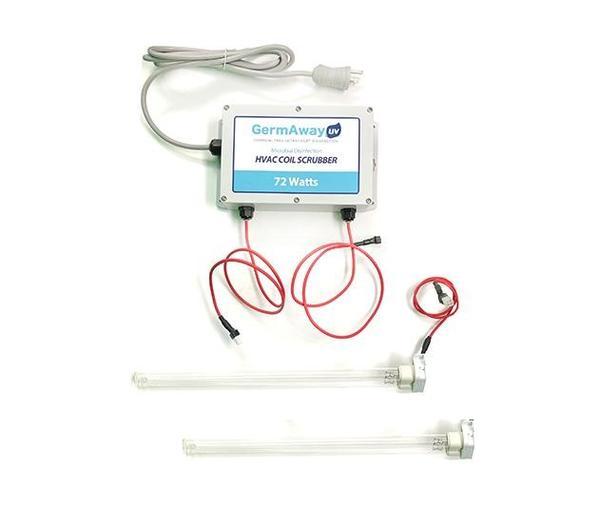

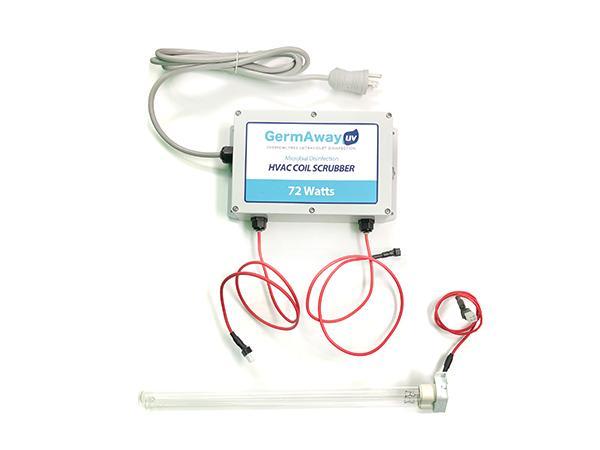

- 72 Watt Scrubber: AC systems for home over 1,500 square feet.
Which system is right for me?
Generally speaking, you want to get as much UVC intensity as close to the coil as possible. If you have a W-shaped coil, it is considered best practice to install one bulb in each of the crevices in the W, using the 72 watt system. If however, you have a simple coil without much space, you can install the smaller 36 watt system.
What about the electricity cost?
Many people are concerned that having 2 powerful UVC bulbs running all year could be quite expensive. With average electricity costs in the US, running this powerful AC coil scrubber costs roughly $6.31 per month, a reasonable price to pay for cleaner healthier air.
Specifications:

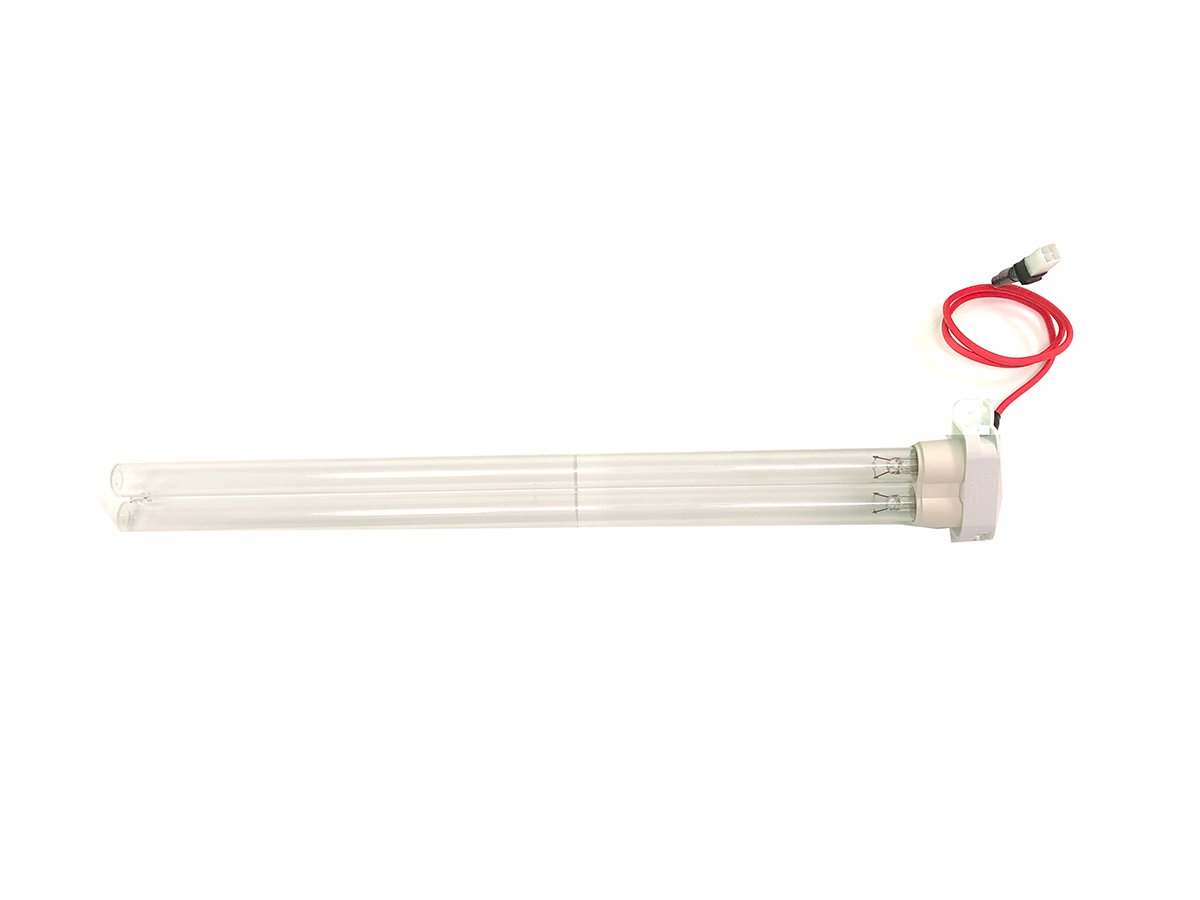

- Power: 72 watts/36 watts
- Bulb Life: 10,000 hours
- Bulb Length: 16.1 inches
- Wavelength: 254nm (UV-C)
UVC Output (measured on EIT UV Power Puck II)
- @1" around bulbs output is 8.5 mw/cm2
- @5" around bulbs output is 4 mw/cm2
- @10" around bulbs output is 1.75 mw/cm2
* mw/cm2 (millwatts per centimeter squared) is a measure of the light intensity. To get dosage (joules), you need to multiply the intensity by the time.
UVC is unsafe for skin and eyes! Please use appropriate personal protective equipment and avoid any UVC exposure to your eyes and skin!
Technical Data Sheet <-- Click Here
CAUTION:
This fixture incorporates a lamp which emits ultraviolet radiation harmful to the eyes and skin. Precautions must be taken to insure that personnel are not exposed to direct or reflected light.
